Sulake MCASE

MCASE™, grey, 2.8mm naaras flat terminals, optimal usage of space, able to handle rush currents, time delayed: 110% of rating opening time min 100h, 600% of rating: opening time 0.04-1s 15A, MCASE™ interrupting ratings: 1000A @32VDC, cold resistance 4.9mΩ, operating temperature -40°C … +125°C, SAE 2741, ISO 8820-4 10.7x6.2x17.5mm

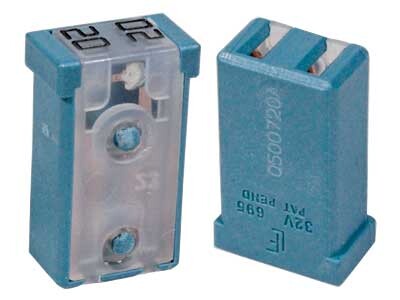

MCASE™, blue, 2.8mm naaras flat terminals, optimal usage of space, able to handle rush currents, time delayed: 110% of rating opening time min 100h, 600% of rating: opening time 0.04-1s 20A, MCASE™ interrupting ratings: 1000A @32VDC, cold resistance 3.5mΩ, operating temperature -40°C … +125°C, SAE 2741, ISO 8820-4 10.7x6.2x17.5mm

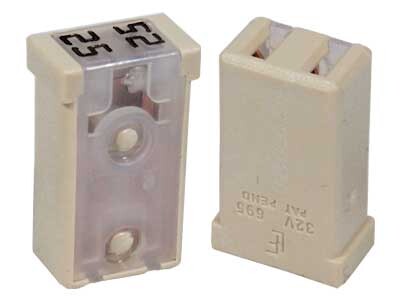

MCASE™, beige, 2.8mm naaras flat terminals, optimal usage of space, able to handle rush currents, time delayed: 110% of rating opening time min 100h, 600% of rating: opening time 0.04-1s 25A, MCASE™ interrupting ratings: 1000A @32VDC, cold resistance 2.3mΩ, operating temperature -40°C … +125°C, SAE 2741, ISO 8820-4 10.7x6.2x17.5mm

MCASE™, pink, 2.8mm naaras flat terminals, optimal usage of space, able to handle rush currents, time delayed: 110% of rating opening time min 100h, 600% of rating: opening time 0.04-1s 30A, MCASE™ interrupting ratings: 1000A @32VDC, cold resistance 1.8mΩ, operating temperature -40°C … +125°C, SAE 2741, ISO 8820-4 10.7x6.2x17.5mm
